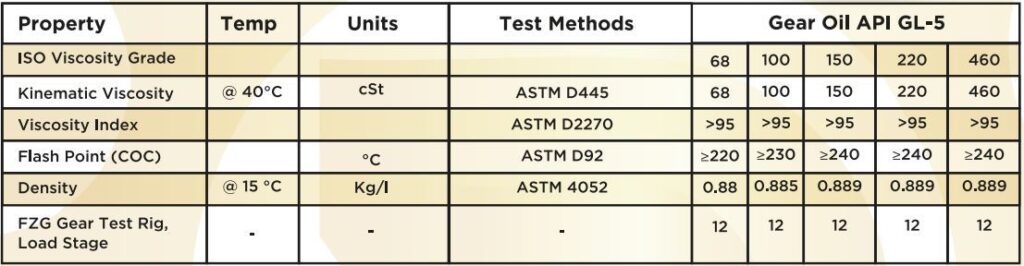

PRADO Industrial Gear Oil
PRADO Industrial Gear Oil is a Supreme Quality and Heavy Duty Extreme Pressure Industrial Gear Oils Specially Formulated For Enclosed Gear Sets Operating Under Moderate And Severe Conditions. Non-Lead Extreme Pressure Additives To Meet the Current Stringent requirement.
Typical Physical Characteristics
ISO Viscosity | 68 | 100 | 150 | 220 | 460 | |||
Kinematic Viscosity | @40*C | Cst | ASTM D445 | 68 | 100 | 150 | 220 | 460 |
Viscosity Index | ASTM D2270 | >95 | >95 | >95 | >95 | >95 | ||
Flash Point (COC) | *C | ASTM D92 | >_220 | >_230 | >_240 | >_240 | >_240 | |
Density | @15*C | Kg/l | ASTM 4052 | 0.88 | 0.885 | 0.889 | 0.889 | 0.889 |
FZG Gear Test Rig Load Stage | - | - | - | 12 | 12 | 12 | 12 | 12 |
Available in: 1 LTR, 4LTR,5LTR,20 LTR,25LTR,25LTR,30LTR,208LTR

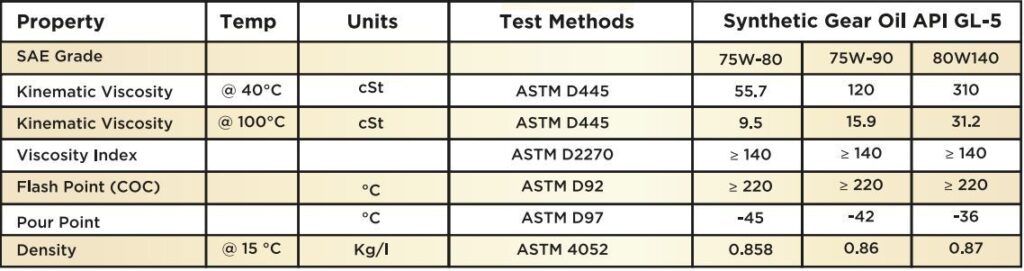

PRADO Synthetic Gear Oil API GL-5 Series
PRADO Synthetic Gear Oil API GL-5 Series are synthetic drivetrain lubricants engineered to meet the most demanding extended drain and warranty requirements. These products are designed for use in heavy-duty drivetrains that require gear lubricants with relatively high viscosity and excellent load-carrying capability and where extreme pressures and shock loading are expected. These products meet or exceed the requirements of API service MT-1/GL-5 EP gear oil service classification and are recommended by Prado Lubs for use in applications requiring the MIL-PRF-2105E specification
Typical Physical Characteristics
SAE Grade | 75W-80 | 75W-90 | 80W140 | |||
Kinematic Viscosity | @40*C | Cst | ASTM D445 | 55.7 | 120 | 310 |
Kinematic Viscosity | @100*C | Cst | ASTM D445 | 9.5 | 15.9 | 31.2 |
Viscosity index | ASTM2270 | 140 | 140 | 140 | ||
Flash Point (COC) | *C | ASTM D92 | 220 | 220 | 220 | |
Pour point | *C | ASTMD97 | -45 | -42 | -36 | |
Density | @15*C | Kg/l | ASTM 4095 | 0.858 | 0.86 | 0.87 |
Available in: 1 LTR, 4LTR,5LTR,20 LTR,25LTR,25LTR,30LTR,208LTR

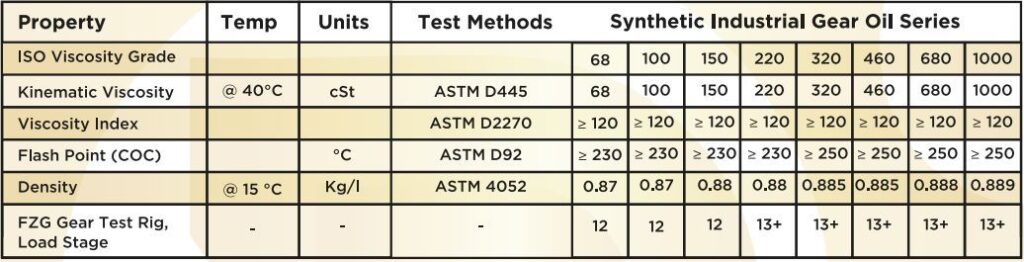

PRADO Synthetic Industrial Gear Oil
PRADO Synthetic Industrial Gear Oil API GL-5 Series are synthetic drivetrain lubricants engineered to meet the most demanding extended drain and warranty requirements. These products are designed for use in heavy-duty drivetrains that require gear lubricants with relatively high viscosity and excellent load-carrying capability and where extreme pressures and shock loading are expected.
Typical Physical Characteristics
ISO Viscosity Grade | 68 | 100 | 150 | 220 | 320 | 460 | 680 | 1000 | |||
Kinematic Viscosity | @40*C | Cst | ASTM D445 | 68 | 100 | 150 | 220 | 320 | 460 | 680 | 1000 |
Viscosity index | ASTM D2270 | >_120 | >_120 | >_120 | >_120 | >_120 | >_120 | >_120 | >_120 | ||
Flash Point (COC) | *C | ASTM D92 | >_230 | >_230 | >_230 | >_230 | >_250 | >_250 | >_250 | >_250 | |
Density | @15*C | Kg/l | ASTM 4052 | 0.87 | 0.87 | 0.88 | 0.88 | 0.885 | 0.885 | 0.888 | 0.889 |
FZG Gear Test Rig, Load Stage | 12 | 12 | 12 | 13+ | 13+ | 13+ | 13+ | 13+ |
Property | Temp | Units | Test Methods | Gear Oil API GL -5 |
Property | Temp | Units | Test Methods | Synthetic Gear oil API GL -5 |
Property | Temp | Units | Test Methods | Synthetic Industrial Gear Oil Series |

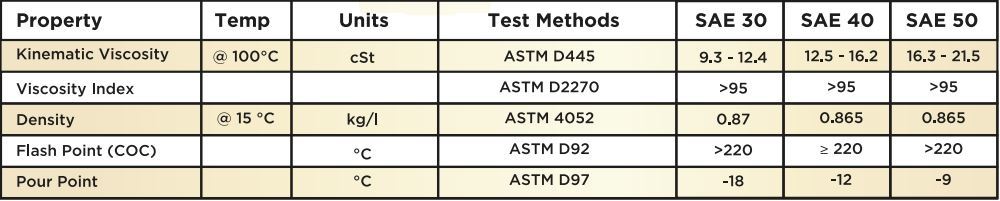

PRADO TO-4 Series
PRADO TO-4 is an extra high-performance transmission and drive-train lubricant engineered to meet the rigorous specifications required by Caterpillar TO-4. This product line is uniquely designed to optimize the performance of power shift transmissions, gearboxes, and final drives.
These products offer a clear performance advantage over the use of mixed fleet engine oils and previously used lubricants meeting Caterpillar TO-2.
Typical Physical Characteristics
Property | Temp | Units | Test Methods | SAE30 | SAE30 | SAE SO |
Kinematic Viscosity | @ lOOoc | est | AS TM 0445 | 9.3-12.4 | 12.5-16.2 | 16.3-21.S |
Viscosity Index | A5TM D2270 | >95 | >95 | >95 | ||
Density | @ 15 °C | kg/I | A5TM 4052 | 0.87 | 0.865 | 0.865 |
Flash Point (COC) | ·c | A5TM 092 | >220 | >_220 | >220 | |
Pour Point | ·c | ASTM D97 | -18 | -12 | -9 |

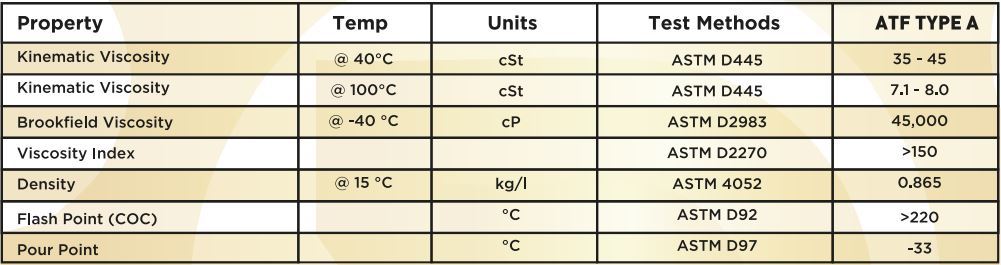

PRADO ATF TYPE A
PRADO ATF TYPE A is an automatic transmission fluid developed for the automatic transmissions and power steering systems of vehicles specifying the use of General Motors TYPE A SUFFIX A quality fluids. The highly refined base oils and proven performance additives used in this oil provide enhanced thermal stability, frictional characteristics, and rust & corrosion protection. It exceeds the performance requirements of General Motors TYPE A SUFFIX A specifications.
Typical Physical Characteristics
Property | Temp | Units | Test Methods | ATF TYPE A |
Kinematic Viscosity | @ 40 °C | cst | AS TM 0445 | 35-45 |
Kinematic Viscosity | @ 100 °C | cst | ASTM D445 | 7.1 • 8.0 |
Brookfield Viscosity | @ -40 °C | cP | ASTM D2983 | 45,000 |
Viscosity Index | ASTM D2270 | >150 | ||
Density | @ 1s 0 c | kg/I | ASTM 4052 | 0.865 |
Flash Point (COC) | ·c | ASTM D92 | >220 | |
Pour Point | ·c | ASTM D97 | -33 |

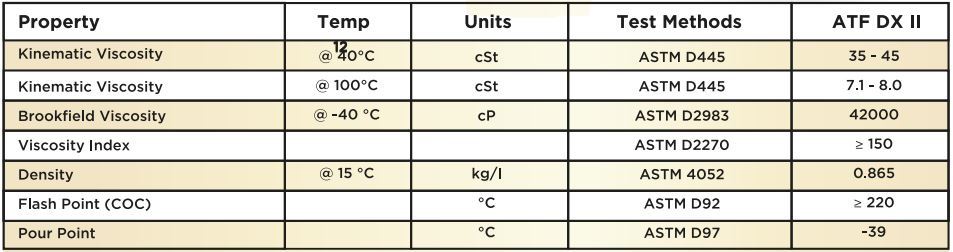

PRADO ATF DX II
PRADO ATF DX-II is the highest quality transmission fluid that meets General Motors Dexron Il specifications. A special fluid with highly improved performance carefully formulated to be a multi-functional power transmission fluid that satisfies the latest requirements of passenger cars and commercial vehicle automatics.
Typical Physical Characteristics
Property | Temp | Units | Test Methods | ATF DX II |
Kinematic Viscosity | @ 40 °C | cst | AS TM D445 | 35-45 |
Kinematic Viscosity | @ 100 °C | cst | ASTM D445 | 7.1 • 8.0 |
Brookfield Viscosity | @ -40 °C | cP | ASTM 02983 | 42,000 |
Viscosity Index | ASTM D2270 | >_150 | ||
Density | @ 15 °C | kg/I | ASTM 4052 | 0.865 |
Flash Point (COC) | °C | ASTM D92 | >_220 | |
Pour Point | °C | ASTM D97 | -39 |

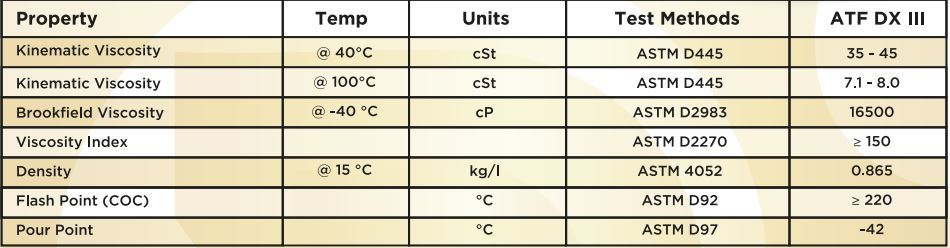

PRADO ATF DX III
PRADO ATF DX III is the highest quality transmission fluid that meets General Motors Dexron III specifications. A special fluid with highly improved performance over Dexron II D and Dexron II E and is carefully formulated to be a multi-functional power transmission fluid that satisfies the latest requirements of passenger cars and commercial vehicle automatics. It has the facility and oiliness suited to the requirements of modern automatic gearboxes.
Typical Physical Characteristics
Property | Temp | Units | Test Methods | ATF DX III |
Kinematic Viscosity | @ 40 °C | cst | AS TM D445 | 35-45 |
Kinematic Viscosity | @ 100 °C | cst | ASTM D445 | 7.1 • 8.0 |
Brookfield Viscosity | @ -40 °C | cP | ASTM 02983 | 16500 |
Viscosity Index | ASTM D2270 | >_150 | ||
Density | @ 15 °C | kg/I | ASTM 4052 | 0.865 |
Flash Point (COC) | °C | ASTM D92 | >_220 | |
Pour Point | °C | ASTM D97 | -42 |

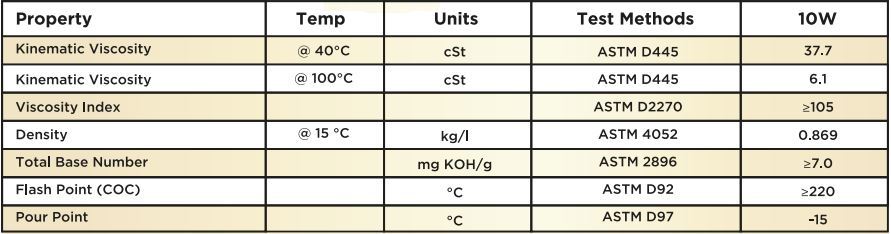

PRADO HYDRAULIC 10W
PRADO Hydraulic 10W is a high-performance hydraulic oil formulated from advanced base oils and a balanced additive system designed to satisfy a wide range of heavy-duty hydraulic equipment requirements. Prado Hydraulic 10W is used in a wide range of on and off-highway hydraulic applications.
Typical Physical Characteristics
Property | Temp | Units | Test Methods | 10 W |
Kinematic Viscosity | @ 40 °C | cst | AS TM D445 | 37.7 |
Kinematic Viscosity | @ 100 °C | cst | ASTM D445 | 6.1 |
Viscosity Index | ASTM D2270 | >_105 | ||
Density | @ 15 °C | kg/I | ASTM 4052 | 0.869 |
Total Base Number | mg KOH/g | ASTM 2896 | >_7.0 | |
Flash Point (COC) | °C | ASTM D92 | >_220 | |
Pour Point | °C | ASTM D97 | -15 |

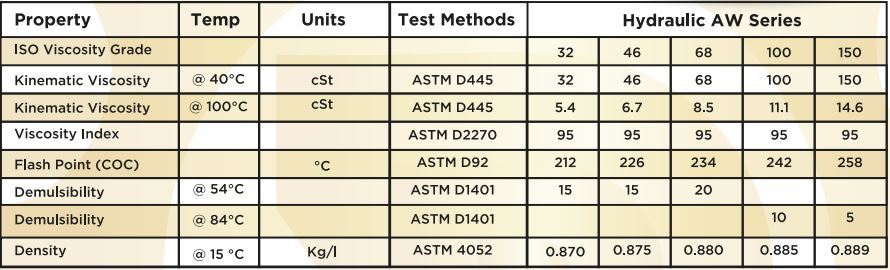

HYDRAULIC OIL AW
PRADO Hydraulic AW Series is a premium hydraulic oil with an extra boost of Anti-wear additives intended for industrial and mobile service applications, subjected to moderate operating conditions, and requiring anti-wear lubricants. Their effective oxidation resistance and chemical stability support good oil life in moderate to severe applications.
Typical Physical Characteristics

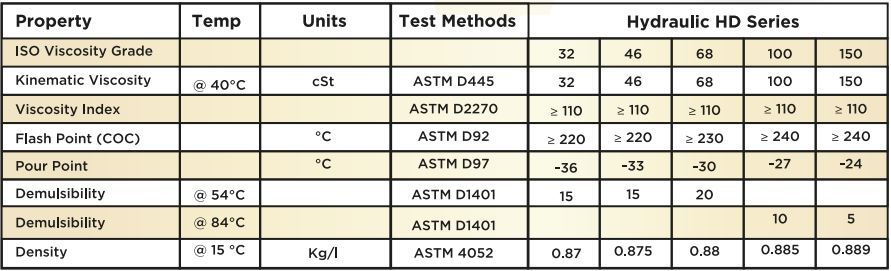

HYDRAULIC OIL HD
PRADO Hydraulic HD Series are supreme performance hydraulic oils formulated from synthesized, wax-free hydrocarbon base fluids combined with a carefully engineered super stabilized additive system. The products exhibit extremely high viscosity indexes contributing to their excellent low and high-temperature performance making them an excellent choice for equipment that is subjected to a wide range of start-up and operating temperatures.
Typical Physical Characteristics

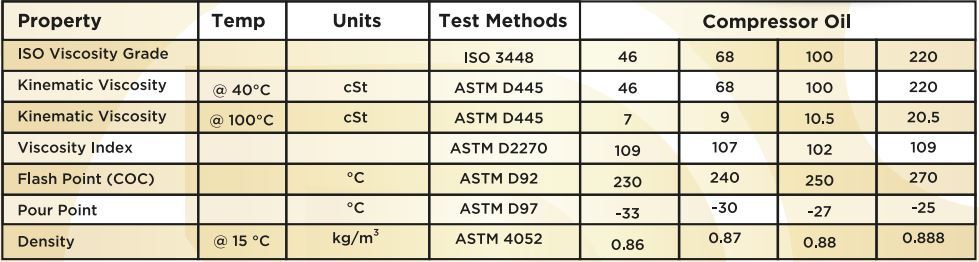

PRADO COMPRESSOR OIL
PRADO Compressor Oil is a premium performance ashless air compressor lubricant designed to meet the stringent requirements of major compressor manufacturers. It is formulated with high-quality mineral base-oils and a high-performance additive system designed to provide exceptional equipment protection and reliability for modern compressors operating under mild to severe conditions in industrial applications. It provides excellent wear protection and the ability to reduce maintenance costs by minimizing downstream deposits and carryover.
Typical Physical Characteristics

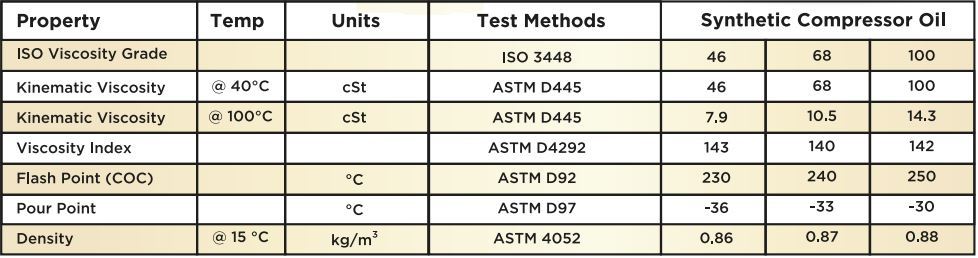

PRADO SYNTHETIC COMPRESSOR OIL
PRADO Synthetic Compressor Oil is a premium quality synthetic lubricating oil fully engineered for use in all types of compressors and circulatory systems operating at high temperatures and severe conditions. The synthetic base fluids in combination with the advanced additive system provide the outmost wear protection and excellent thermo-oxidative stability.outmost
Typical Physical Characteristics
PRADO Soluble Cutting Oil
PRADO Soluble Cutting oil is water-soluble, general-purpose cutting oil designed for moderate-duty cutting and metalworking operations. It is formulated with select base oils and fortified with soaps, sulfates, and coupling agents. It also contains stabilizers to control odor and provide long service life.
Typical Physical Characteristics

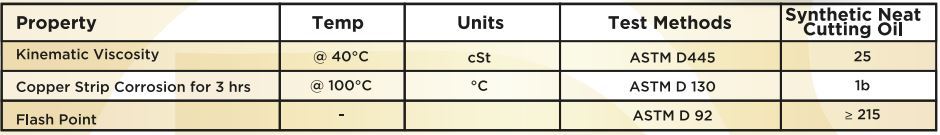

PRADO Synthetic Cutting Oil
PRADO Synthetic Cutting Oil Oils are either mixture of ultra-pure HT Hydrocracked base oils with varying amounts of extreme pressure additives to provide the needed lubricity under severe boundary lubrication conditions. Prado Synthetic Cutting Oil greatly reduces friction at the tool tip, where the highest temperatures occur and between the moving tip and the rake face of the cutting tool.
Typical Physical Characteristics
REDOX PRADO Neat Cutting Oil
REDOX PRADO Neat Cutting oil is a chlorine-free, multi-metal compatible, high-performance neat cutting oil, which is based on plant oil and synthetic hydrocarbon technology. It has highlighted low misting characteristics, robust oxidation stability, and excellent cooling properties, which can help create productivity increases.
Typical Physical Characteristics

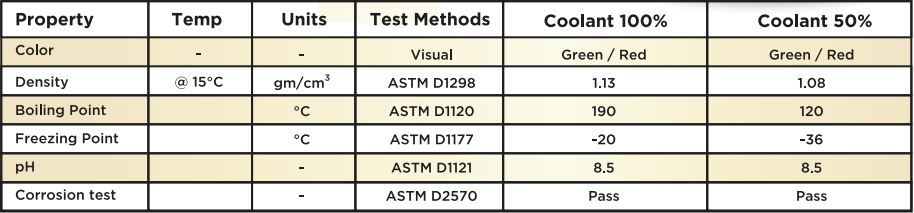

Anti-Freeze Coolant 100% and 50%
PRADO Anti-Freeze Coolant is an ethylene glycol-based fluid that provides maintenance-free protection against freezing, boiling, and corrosion. The additive system composed of the organic additive technology provides an Extended coolant life, often for the whole life of the engine or vehicle is obtained through the use of virtually non-depleting corrosion inhibitors. It provides the utmost wear protection and excellent thermo-oxidative stability.
Typical Physical Characteristics

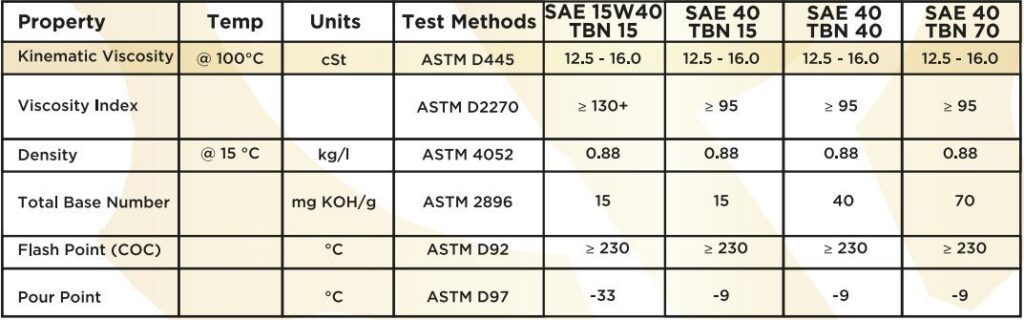

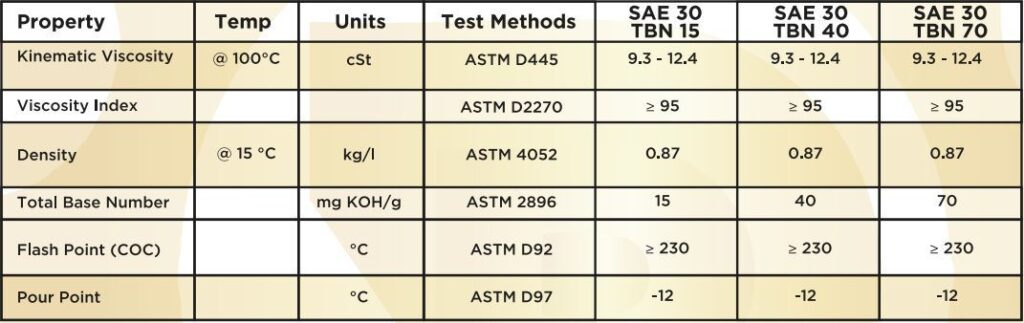

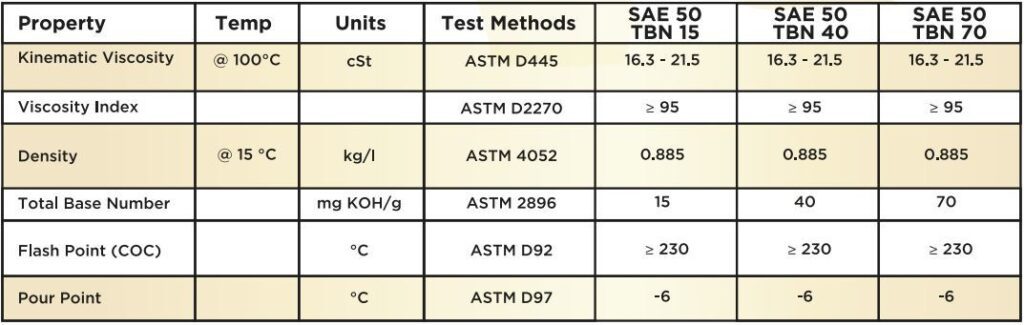

PRADO Marine Oil Series
PRADO Marine Oil is a high-quality, engine oil designed for use in the most severe residual-fuelled medium-speed diesel applications found in marine and stationary power industries. This diesel engine oil has been specially formulated to provide outstanding residual fuel compatibility characteristics for excellent engine cleanliness, especially in the crankcase, camshaft areas, ring belt, and piston under the crown. It provides excellent high-temperature oxidation and thermal stability, low volatility, and high load-carrying properties, and corrosion protection.
Typical Physical Characteristics
PRADO Bearing Grease
PRADO Bearing Grease is an extreme pressure lithium Bearing grease that can be used as an automotive and Industrial Grease, it is blended with high-quality base oil with lead-free EP additive and is for use where surfaces are subjected to heavy or shock loading. It also has a premium performance technically advanced multipurpose automotive and industrial EP grease designed for superior performance under harsh conditions.
Typical Physical Characteristics

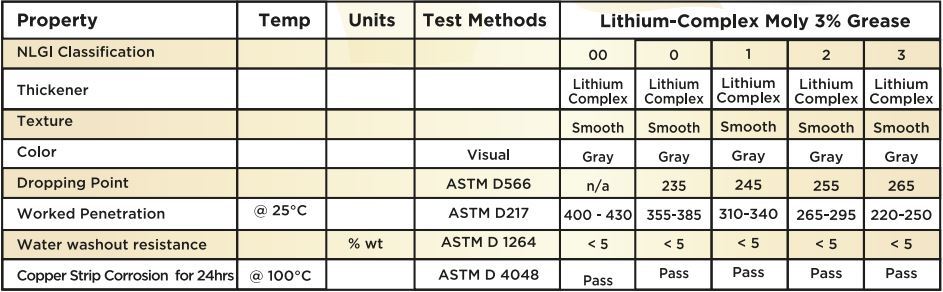

PRADO Moly 3% Grease Lithium-Complex Base
PRADO Moly Grease is a high-performance product specially formulated for plain and anti-friction bearing applications operating under high stress/high load conditions, coupled with high ambient temperatures typically found in heavy-duty off-road applications. Has Unique additive technology of this product makes it tenacious at adhering to metal surfaces found in this industry while protecting these vital components from rust and corrosion.
Typical Physical Characteristics

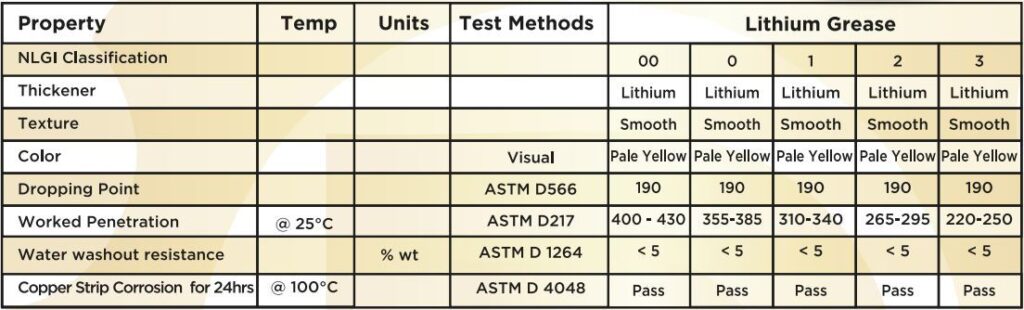

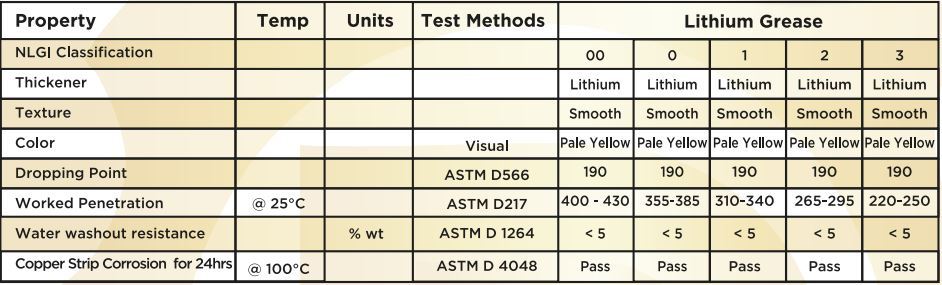

PRADO MP Grease Lithium Base
PRADO MP Lithium Grease is a series of high quality, lithium hydroxy stearate grease, with oxidation and corrosion inhibitors, which help to ensure the long service life of the grease and a high level of protection for ferrous surfaces. It is recommended for all grease-lubricated parts in automotive applications.
Typical Physical Characteristics

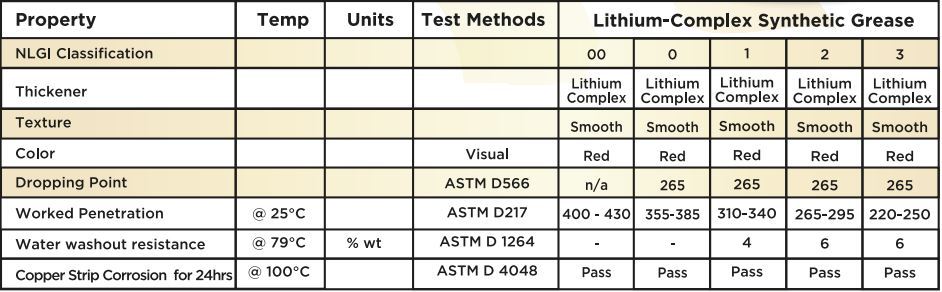

PRADO Synthetic Grease Lithium-Complex Base
PRADO Synthetic Grease Series is a Lithium-Complex thickener base and has a superior performance product designed for a wide variety of applications at extremes temperatures and it has excellent adhesion, structural stability, and resistance to water. The greases have a high level of chemical stability and are formulated with special additive combinations to provide excellent protection against wear, rust and corrosion, and providing operating viscosity at high and low temperatures.
Typical Physical Characteristics
PRADO EP Grease Lithium Base Transparent
PRADO EP Lithium Grease is an extreme pressure lithium multipurpose automotive and Industrial Grease that contains high-quality base oils, blended with lead-free EP additive, and is for use where surfaces are subjected to heavy or shock loading. These greases can be used at higher temperatures of up to 180°C for a short duration or with frequent replacement. Continuous operating temperature range for these greases: -20 to 130°C
Typical Physical Characteristics
PRADO MP Grease Calcium Base
PRADO MP Calcium Grease Series is a quality, smooth, calcium soap-based grease and is fortified with the best known natural solid lubricant, graphite. This grease gives the best combination of performance and economy for most applications. Calcium Grease is resistant to water and has excellent mechanical stability. The use of this grease will reduce wear and gives extended lubricant coverage due to the even distribution of the product along with the wearing parts.
Typical Physical Characteristics

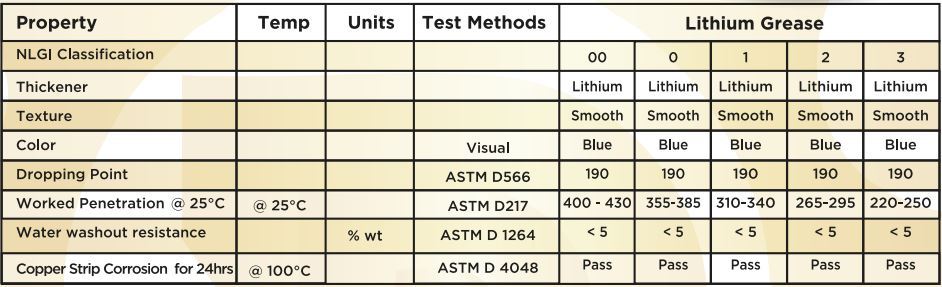

PRADO EP Grease Lithium Base
PRADO EP Lithium Grease is an extreme pressure lithium multipurpose automotive and Industrial Grease that contains high-quality base oils, blended with lead-free EP additive, and is for use where surfaces are subjected to heavy or shock loading. These greases can be used at higher temperatures of up to 180°C for a short duration or with frequent replacement. Continuous operating temperature range for these greases: -20 to 130°C.
Typical Physical Characteristics
PRADO EP High Temp Grease Lithium Base
PRADO EP Lithium Grease is an extreme pressure lithium multipurpose automotive and Industrial Grease that contains a high-quality base oil, blended with lead-free EP additive, and is for use where surfaces are subjected to heavy or shock loading. These greases can be used at higher temperatures of up to 250°C for a short duration or with frequent replacement. Continuous operating temperature range for these greases: -20 to 130°C
Typical Physical Characteristics
